Detection & PCR Instruments

Five instruments spanning fully automated sample-to-answer systems, high-throughput 96-well qPCR, compact portable units, and conventional thermocycling — designed for clinical diagnostics and research.

Automated MDx

Automated MDx System

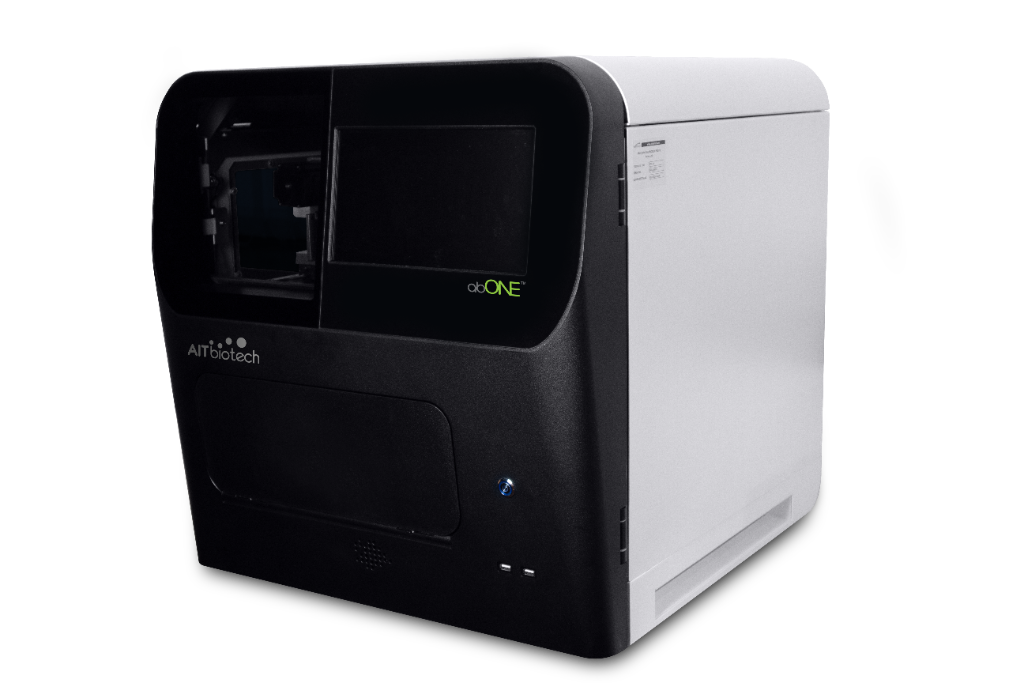

abONE™

The complete sample-to-answer MDx system. Load your sample, scan the barcode, and walk away — abONE™ handles extraction, PCR setup, and detection automatically, delivering results in as little as 3 hours.

Samples per runUp to 16

Channels5

Hands-on time5–8 min

Extraction recovery≥98%

CE-IVDLearn more →

Real-Time PCR Systems

REAL-TIME PCR SYSTEM

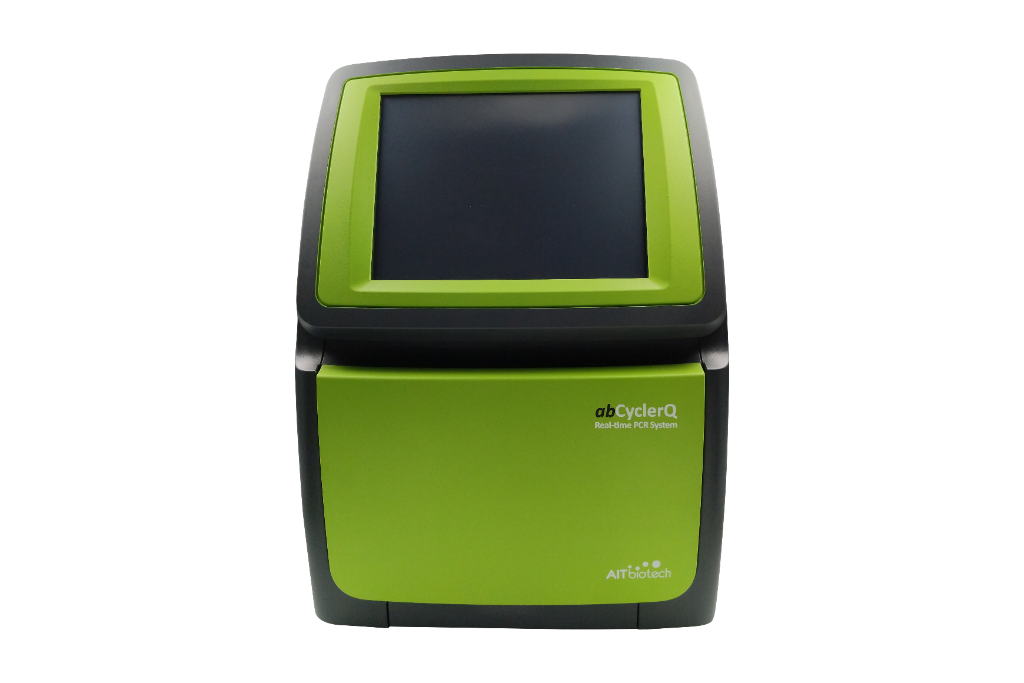

abCycler™ Q

6-channel, 96-well qPCR. 7-second simultaneous optical scan. CE-IVD certified for clinical diagnostic use.

CE-IVDIVD

Learn more →

REAL-TIME PCR SYSTEM

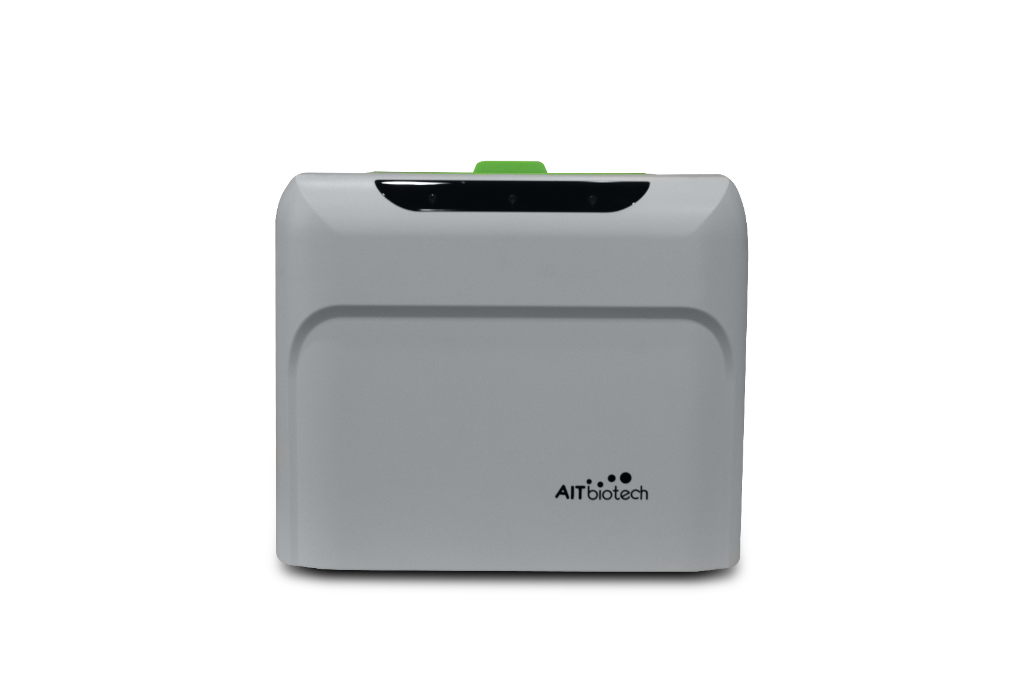

abCycler™ Qs

4-channel, 96-well. Bottom scanning via optical fiber. Simultaneously scans 48 samples. Fast, accurate and reliable.

RUO

Learn more →

REAL-TIME PCR SYSTEM

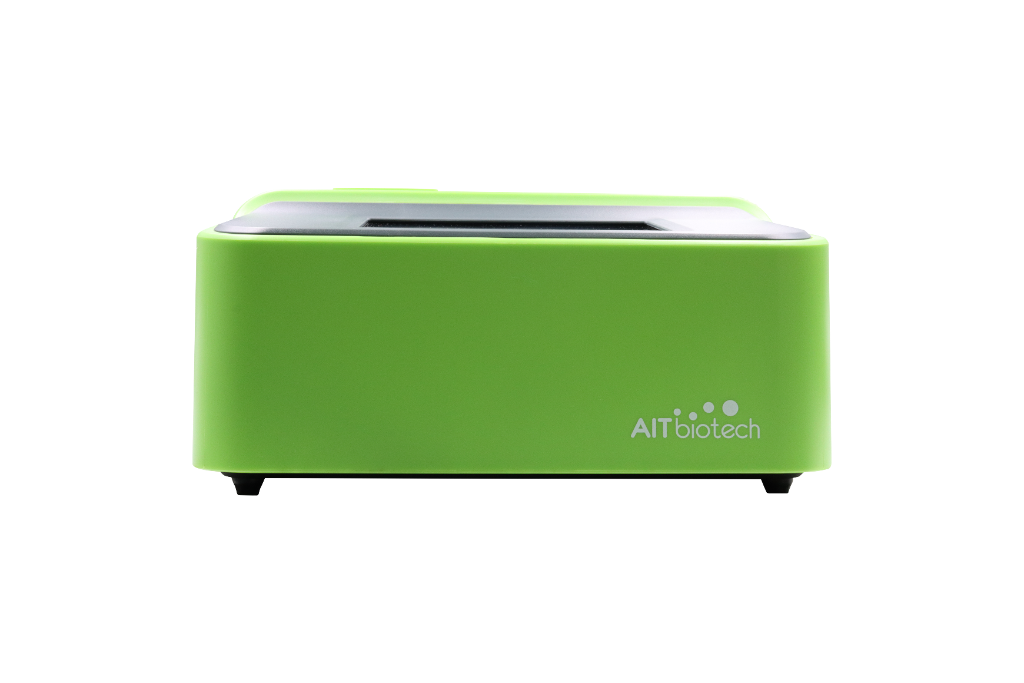

abCycler™ Qmini

Compact 3-channel qPCR, 16-tube capacity. Just 4.5 kg — portable for outfield and point-of-need testing.

RUO

Learn more →

THERMOCYCLER SYSTEM

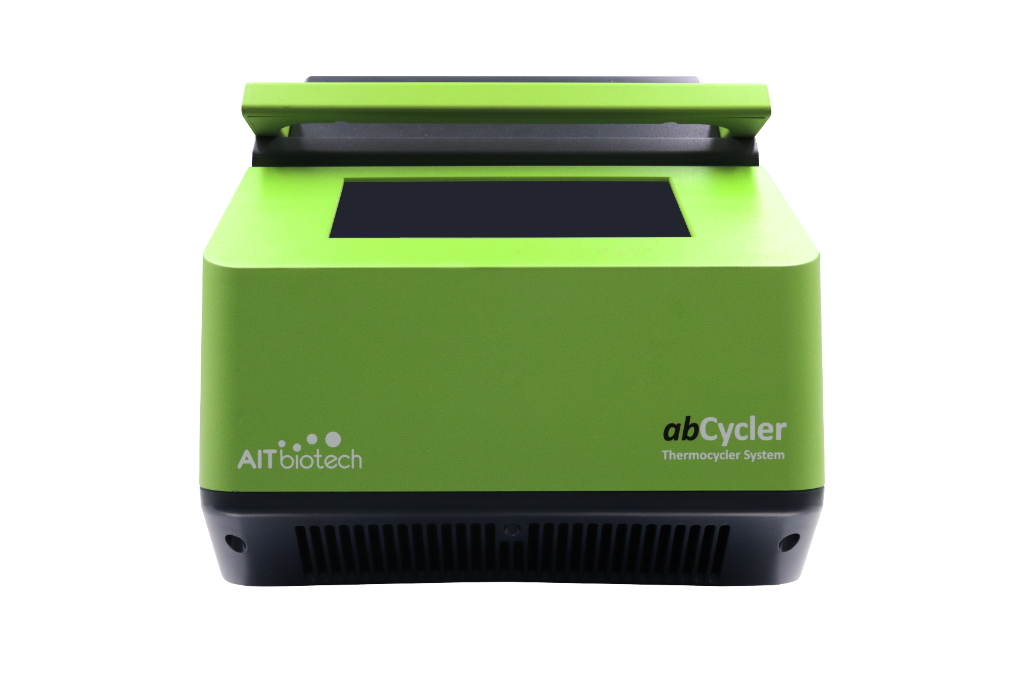

abCycler™

Affordable standalone thermal cycler for endpoint PCR. 96-well, gradient capability. Standard, Long, Touchdown and Gradient protocols.

RUO

Learn more →

Compare Instruments

Specification	abONE™	abCycler™ Q	abCycler™ Qs	abCycler™ Qmini	abCycler™
Type	Automated MDx	RT-PCR	RT-PCR	RT-PCR	Thermocycler
Fluorescence channels	5	6	4	3	—
Sample capacity	16	96	96	16	96
Built-in extraction	✓	—	—	—	—
Real-time detection	✓	✓	✓	✓	—
Multiplexing	5 targets	5 targets	4 targets	3 targets	—
Gradient PCR	—	✓	—	—	✓
LIS compatible	✓	✓	—	—	—
Portable	—	—	—	✓	—
Regulatory status	CE-IVD	CE-IVD · IVD	RUO	RUO	RUO
Temperature range	40–99°C (qPCR)	0–100°C	4–99°C	4–99°C	0–100°C
Weight	76 kg	30 kg	18 kg	4.5 kg	11 kg

abONE™ and abCycler™ Q highlighted as primary clinical diagnostic instruments. All specifications sourced from product datasheets.
