Optical System
4-channel bottom scanning via optical fiber
Unlike conventional top-scanning systems, abCyclerQs™ scans from the bottom using optical fibers — delivering uniform fluorescence detection across all 96 wells simultaneously with no edge effect.
Key Differentiator
Optical fiber bottom scan
High-power LED excitation combined with photodiode detection via optical fibers positioned below the sample block. All 4 channels are measured simultaneously for every well in a single scan pass — eliminating the time and variance associated with sequential scanning approaches.
CH 1 · 470/525 nm
FAM · SYBR Green
EvaGreen
CH 2 · 525/570 nm
HEX · VIC · TET
JOE
CH 3 · 570/620 nm
ROX · Texas Red
Passive reference
CH 4 · 620/670 nm
Cy5
—
Features
Reliable results, every run
Simultaneous all-well scan
All 96 wells measured simultaneously across all 4 channels in a single scan — faster data acquisition and reduced inter-well timing variance.
High temperature precision
Temperature accuracy of 0.1°C and block uniformity of ±0.25°C — delivering consistent Ct values across all well positions.
4-plex multiplex detection
4-channel detection supports multiplexed assays — detect up to 4 targets simultaneously per well for efficient use of samples and reagents.
Wide dynamic range
Dynamic range of 1–10⁹ copies with sample linearity R ≥ 0.99 — reliable quantification across a broad range of target concentrations.
Intuitive control interface
User-friendly software interface with straightforward protocol setup, real-time amplification curves, and flexible data export options.
Compact footprint

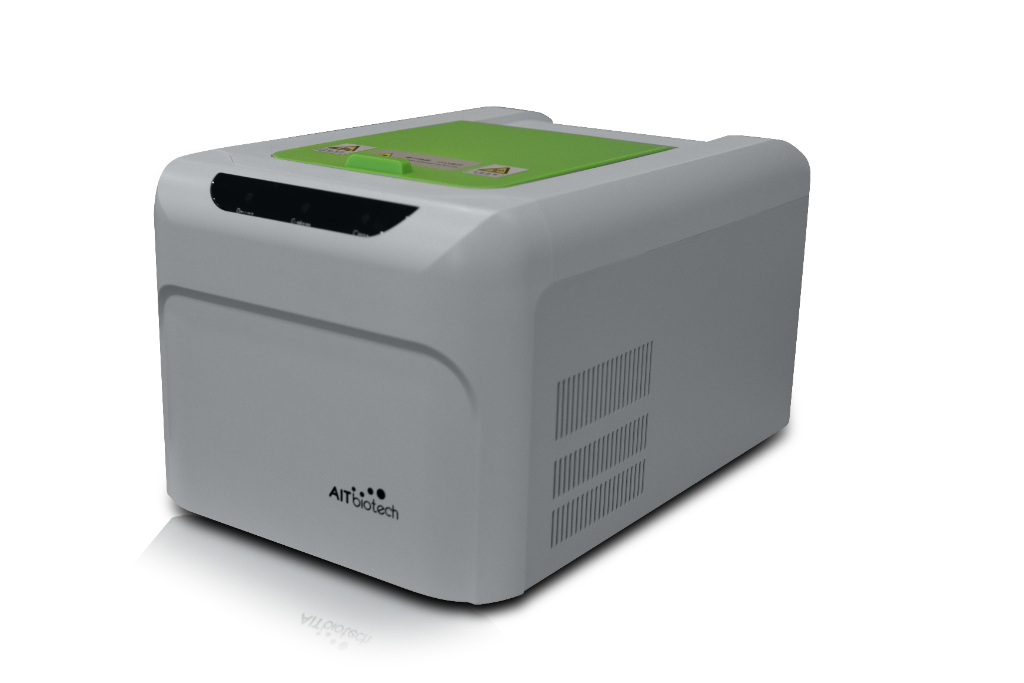

At 18 kg and 466 × 310 × 273 mm, abCyclerQs™ fits comfortably on any benchtop without sacrificing throughput — ideal for space-constrained labs.
Specifications
Technical specification
