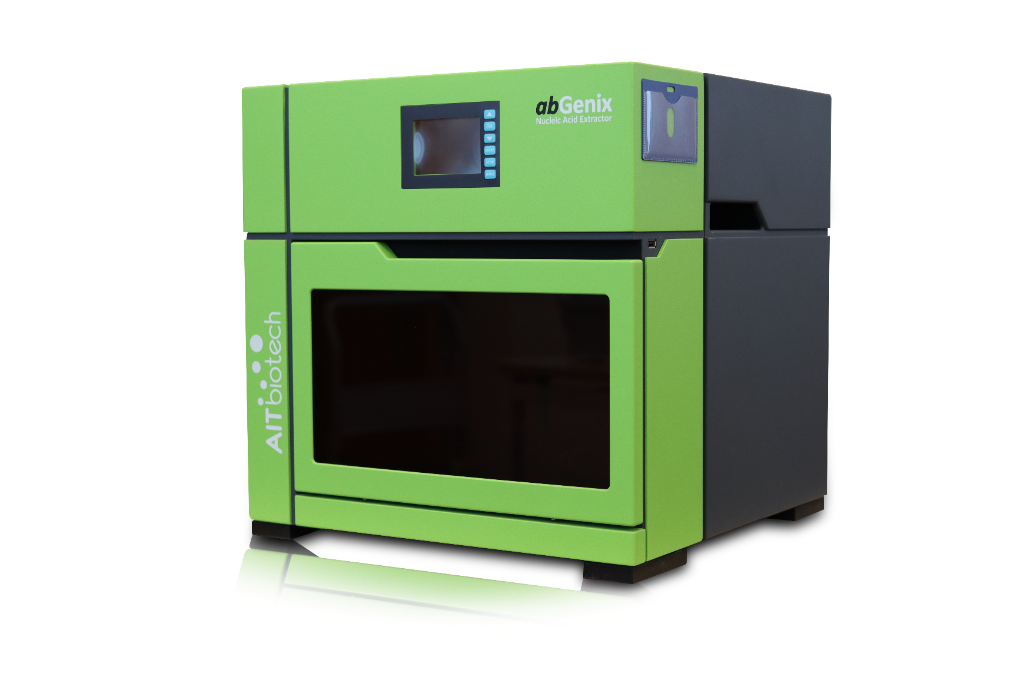

abGenix™

Nucleic Acid Extractor

Automated DNA & RNA extraction using proprietary Magnetic Pillar Rod Technology — delivering high-yield, reproducible results from 1 to 32 samples per batch across a wide range of clinical sample types.

CE-IVD

Request a Demo

32samples

Max per batch

95%

Bead recovery rate

30–60 min

Processing time

15protocols

Pre-installed

Features

Built for the clinical lab

Walk-away automation

Load samples and walk away — abGenix™ handles lysis, binding, washing, and elution automatically with no manual intervention required.

Intuitive touch control

Integrated microprocessor with touch control panel and tablet pairing. No external PC required. Supports English and Chinese language interfaces.

Wide sample compatibility

Compatible with nasopharyngeal swabs, whole blood, serum, plasma, sputum, BAL, urine, tissue, and more — across 7 validated extraction kit types.

Fast turnaround

Processes 1–32 samples in 30–60 minutes depending on kit — significantly faster than manual extraction methods.

Contamination control

Built-in UV light decontamination between runs prevents cross-sample contamination — essential for clinical diagnostic workflows.

Downstream compatible

Extracted nucleic acids optimised for downstream qPCR (abCyclerQ™, abONE™) and sequencing (abSEQ™, abNEX™) applications.

Specifications

Technical specification

Full instrument specifications for the abGenix™ Automated DNA & RNA Extraction System.

GENERAL
Model	abGenix™
Catalogue No.	800800
Dimension (W × D × H)	440 × 420 × 440 mm
Weight	31.5 kg
EXTRACTION PERFORMANCE
Extraction method	Magnetic Pillar Rod Technology
Sample capacity	1–32 samples per batch
Processing time	30–60 min (kit dependent)
Processing volume	Fixed volume: 100–200 µl (kit dependent)
Elution volume	Fixed volume: 60–100 µl (kit dependent)
Magnetic particle recovery	>95% (sample and kit dependent)
Heating temperature	Room temperature to 120°C

SYSTEM & CONTROL
Hardware	Integrated microprocessor, no external PC required
Control interface	Touch control panel + tablet pairing
Language	English / Chinese
Protocols	15 pre-installed (instrument) · Unlimited (tablet)
Contamination control	UV light
POWER & ENVIRONMENT
Power usage	AC 110–240V, 50/60Hz
Power consumption	600 VA
Operating temperature	10–40°C

Compatible Kits

Extraction kits for every sample type

Pre-filled reagent kits optimised for the abGenix™ platform — available in plate and strip formats for a wide range of clinical sample types.

abGenix™ Extraction Kits

7 validated extraction kits

Plate and strip format kits covering viral DNA & RNA, bacterial genomic DNA, whole blood, tissue, TB, and universal extraction — all CE-IVD certified and optimised for the abGenix™ platform.

ViralBacterialWhole BloodTissueTBUniversal

View all extraction kits →

Ready to automate your extraction workflow?

Speak to our team to arrange a demo, request a quote, or get help selecting the right extraction kit for your application.

Request a Demo Contact Sales
